FULL DESCRIPTION of Item 179020

in Matching Networks 		Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 179020

Offered 8 Offered at Best Price

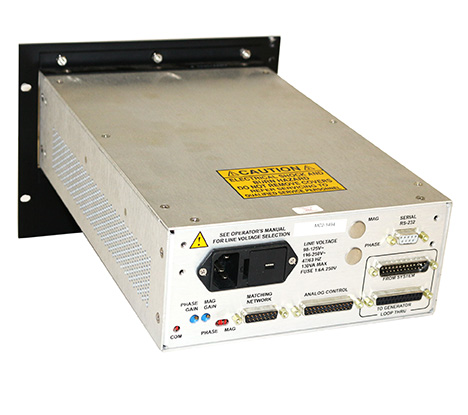

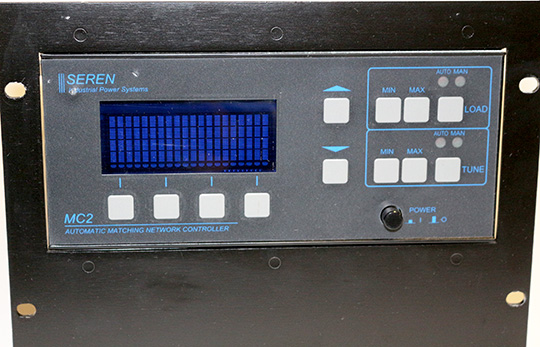

SEREN RF MATCHING NETWORK CONTROLLER

Matching Network Controller - Part number 9200010001

 SEREN RF MATCHING NETWORK CONTROLLER
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price Unstated
Number of Units 8
Manufacturer Seren
Model MC2
Other Information

Part number: 9200010001
Voltage: 98-125V or 198-250V
Frequency: 47-63 Hz, 100VA Maximum, 1.6A Maximum

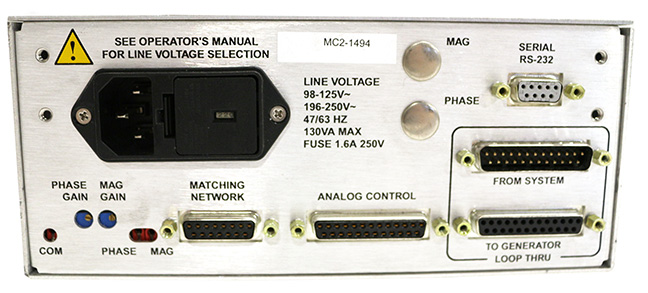

Interfaces:
Matching Network: 15 pin Female D-Sub Connector
Serial RS-232: 9 pin Female D-Sub Connector
Analog Control: 25 Pin Female D-Sub Connector
Loop-Thru To Generator: 25 pin Female D-Sub Connector
Loop-Thru From System: 25 pin Male D-Sub Connector

Exterior Dimensions
  Width 9.500  in  (24.1 cm)
  Depth 12.900  in  (32.8 cm)
  Height 3.500  in  (8.9 cm)
Weight 8  lb  (4 kg)
