Item ID: 225338

**1 Offered at Best Price**

IDEAL AEROSMITH INC. SCORBSY MOTION TEST TABLE

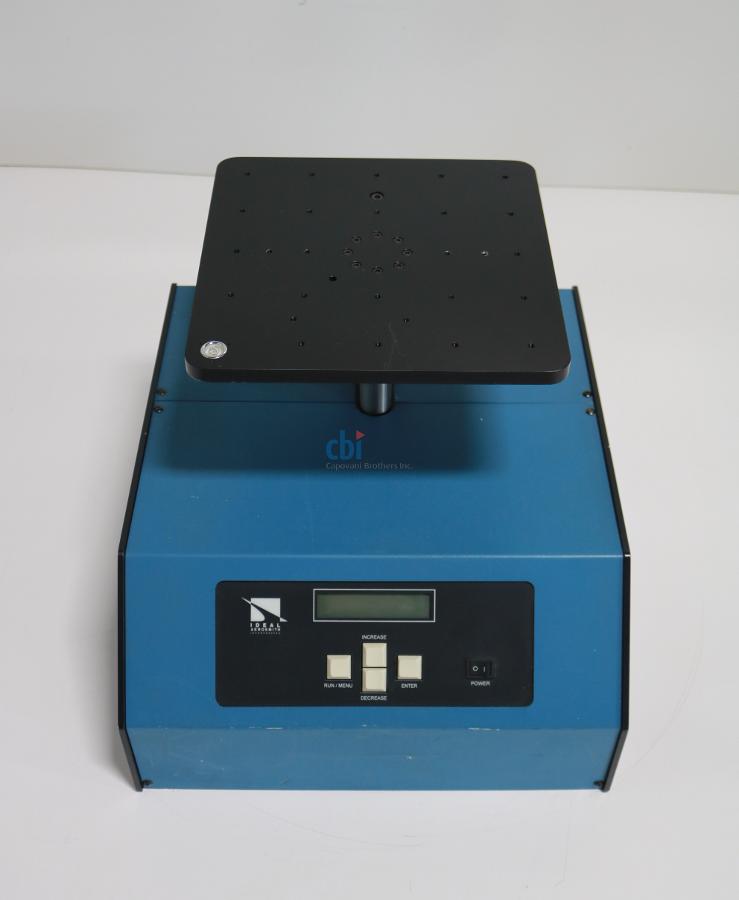

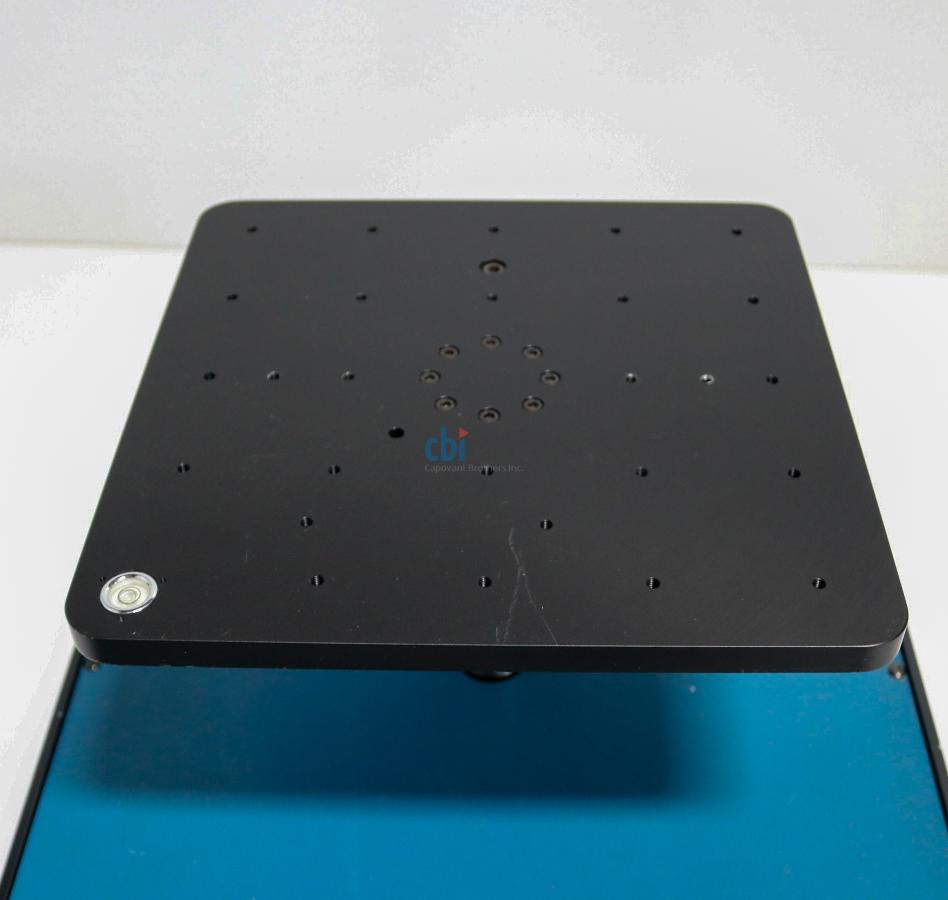

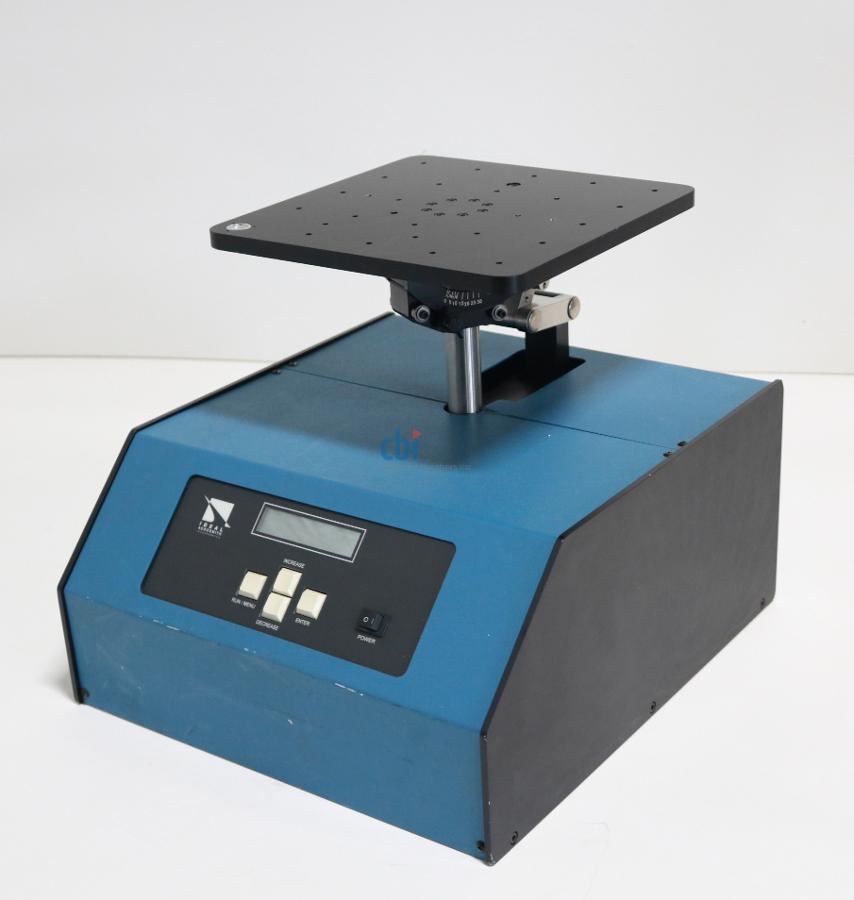

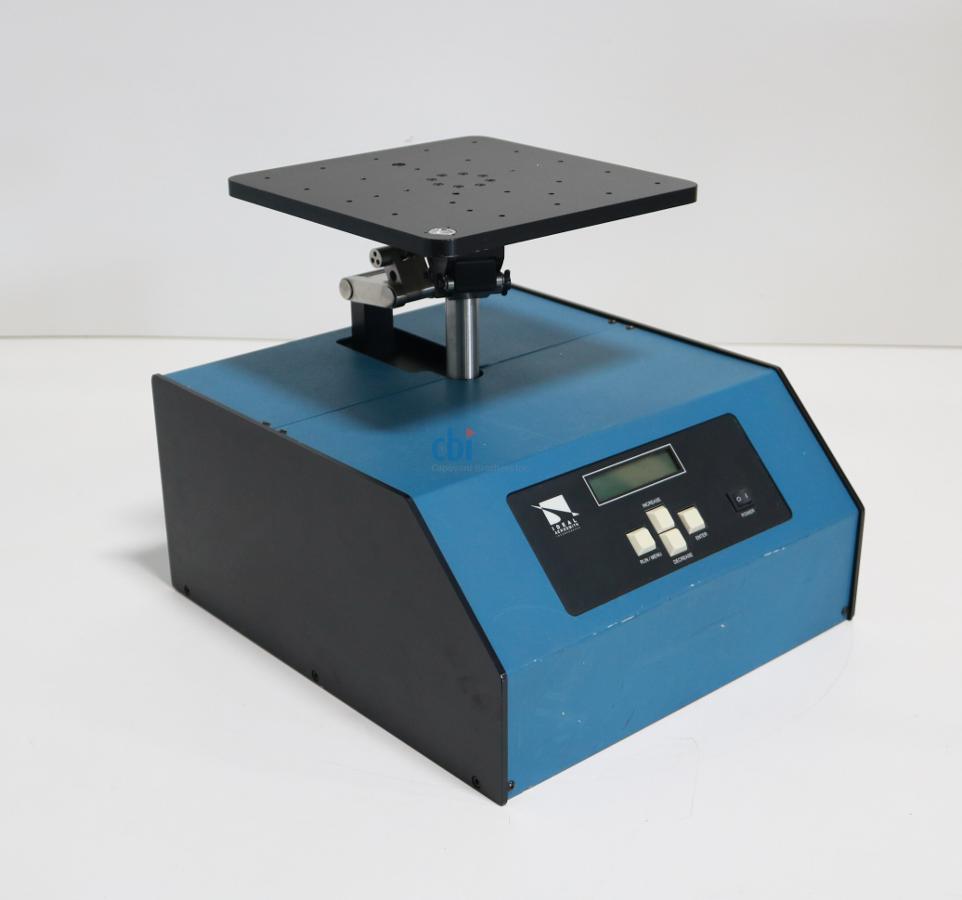

Scorbsy Motion Test Table

The Model 1421 Scorsby Motion Test Table is designed to simulate the roll, pitch, and yaw motions of an aircraft during flight. Primarily used for shop, production, qualification testing, and exercising of gyroscopic aircraft instruments, the Ideal Aerosmith Scorsby table is a standard in the aircraft industry.

... other images

Test Video

Location: Scotia, New York

Unit Price	Unstated
Number of Units	1
Manufacturer	Ideal Aerosmith Inc.
Model	1421
Description	Scorbsy Motion Test Table

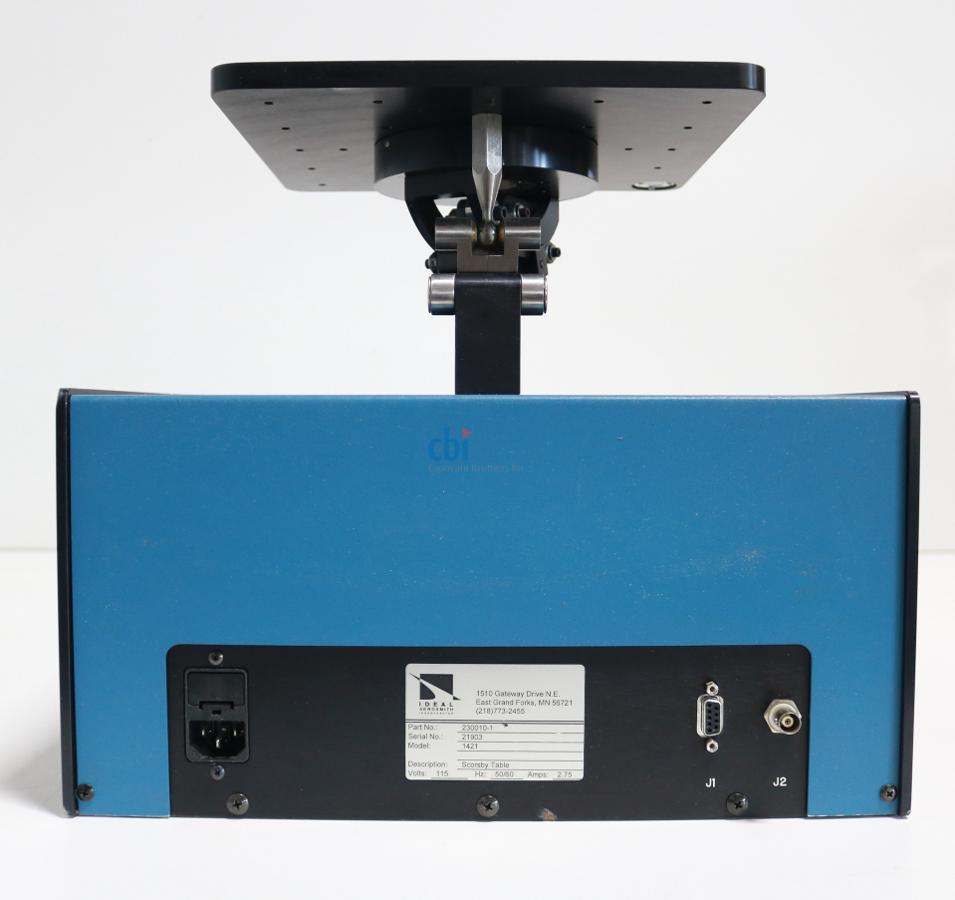

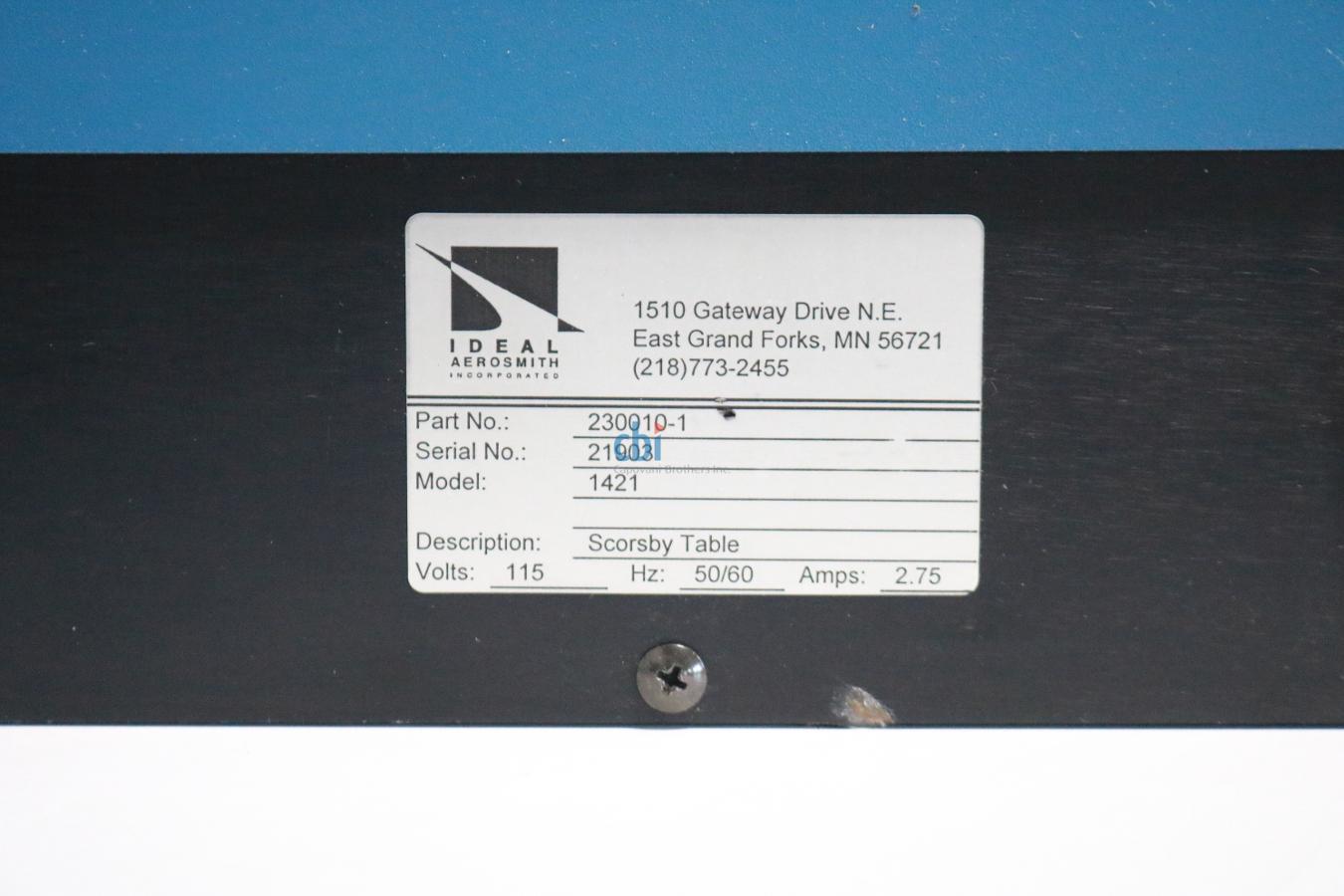

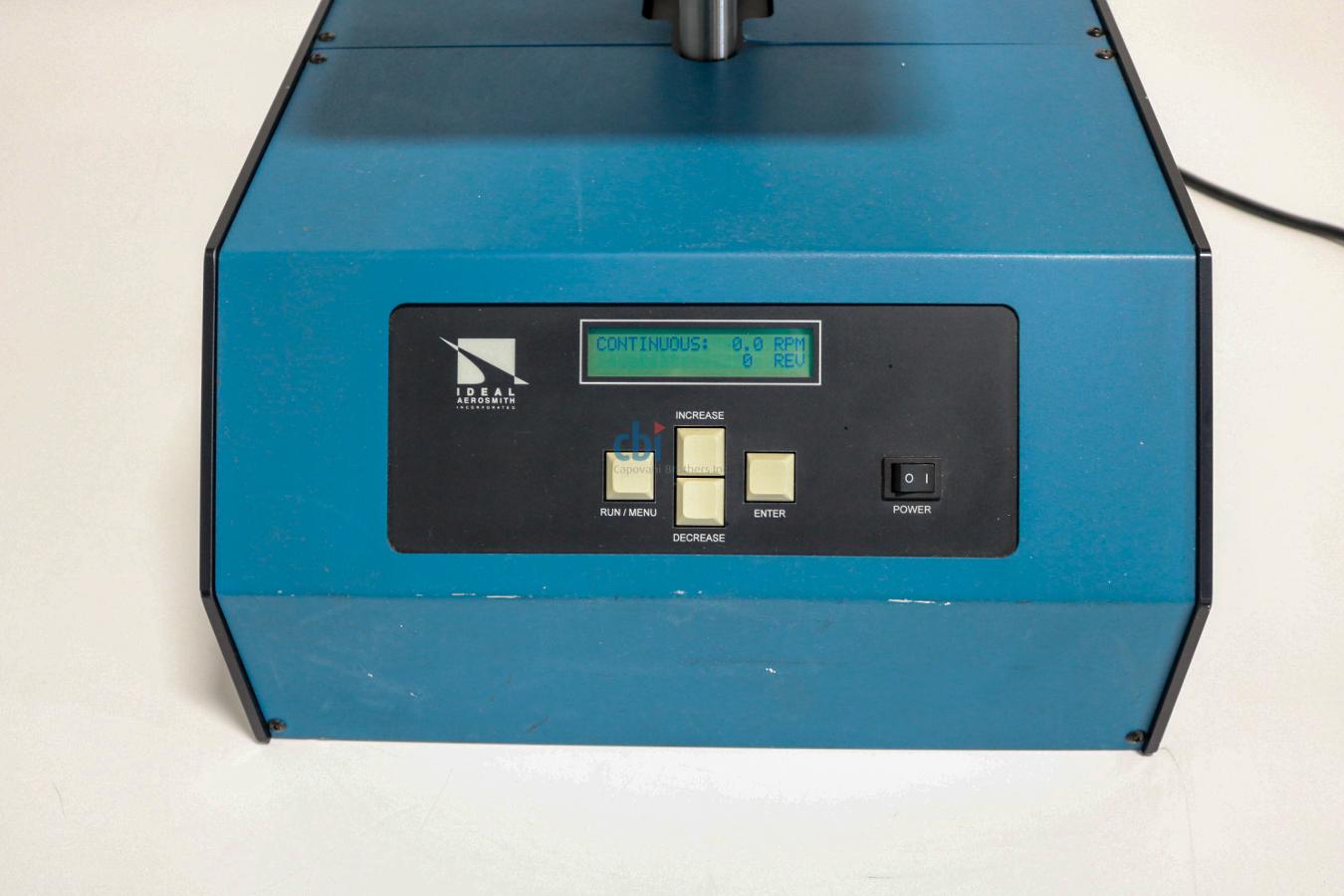

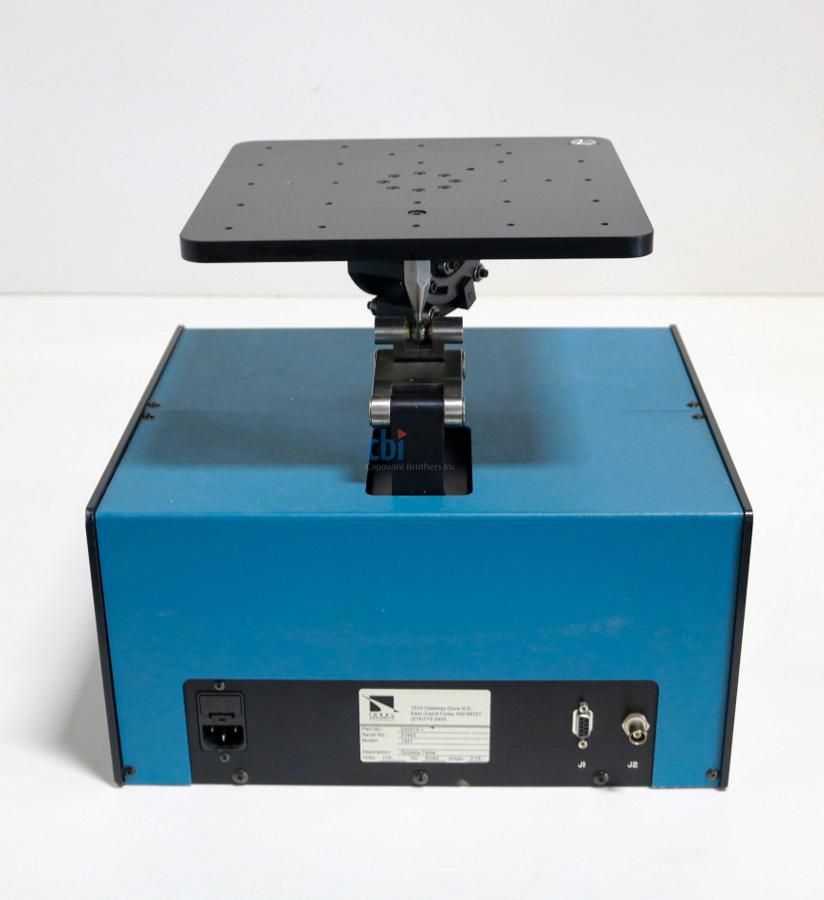

Other Information	The Scorsby table can be operated through the front panel controls or the remote communications interface. The front panel consists of a power switch, LCD display, and four keys: run/menu, increase, decrease, and enter. Part #: 230010-1 Features: J1 Port J2 Port RS-232 Interface LCD Display To play test video, click on it twice. Table was set to 30 degrees, rotation speed 10 RPM. When table angle is set to “0” degrees, with digital protractor placed on the table parallel to the front panel (X axis) and at 90 degrees to the front panel (Y axis), X axis angle varies from -0.1 to +0.8 degrees, Y axis angle varies from -0.3 to +0.6 degrees.
Extended Description	Details at Ideal-Aerosmith-Model-1421_RevP3.pdf
Power Requirements	115 V 2.8 A 50/60 Hz
Exterior Dimensions
Width	16.000 in (40.6 cm)
Depth	15.000 in (38.1 cm)
Height	14.000 in (35.6 cm)
Weight	49 lb (22 kg)
