FULL DESCRIPTION of Item 121599

in DC Magnetron Drives 		Deal directly with Owner:  Capovani Brothers Inc. of Scotia, New York

Item ID: 121599

Offered 8 Offered at $ 4,500.00 (each)

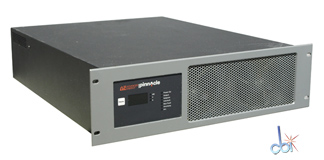

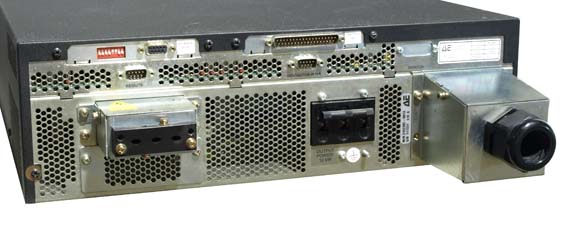

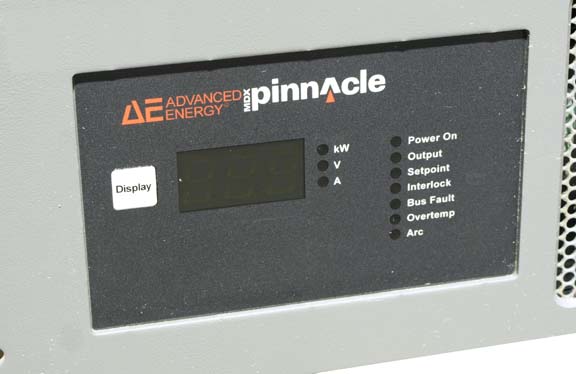

ADVANCED ENERGY PINNACLE DC POWER SUPPLY 12 KW

DC Power Supply

 ADVANCED ENERGY PINNACLE DC POWER SUPPLY 12 KW
  Click to see additional image(s)... other images

Location: Scotia, New York
Unit Price $ 4,500.00 (each)
Number of Units 8
Manufacturer Advanced Energy
Model PINNACLE
Power Output 12.00  kW
Maximum Output Voltage 500.00 Volts
Regulation Modes Constant Current     Constant Voltage     Constant Power
Cables Included No
External Cooling Forced Air Cooled
Other Information

Model number: 3152392-001A (or -001B, -001C)
Low Z output
Communications interface: single channel Profibus

User port analog interface: 24V isolated 37 pin male





Power Requirements 480 V     16.0 A     50/60 Hz     3 Phase
Exterior Dimensions
  Width 19.000  in  (48.3 cm)
  Depth 28.000  in  (71.1 cm)
  Height 6.000  in  (15.2 cm)
Weight 64  lb  (29 kg)
